Palletizer 3D WinCC component

alt

Palletizer 3D WinCC component

€469.00

Updated price and taxes/VAT calculated at checkout

Version Compatibility

TIA Unified PC

unified pc icon

Compatible

TIA Unified Panel

unified hmi icon

Not compatible

WinCC V7.5

wincc v7 icon

Not compatible

WinCC V8.0

wincc v8 icon

Not compatible

Overview :

Transform your HMI/SCADA system with the Palletizer 3D WinCC component, the ultimate tool for optimizing your pallet arrangement processes. Tired of settling for generic configurations that fail to impress? Our intuitive configurator empowers you to design and customize the dimensions and positioning of boxes on pallets in stunning 3D.

  • Example TIA Portal V18 project included
  • HMI Panels like MTP700 Comfort are not supported

Description

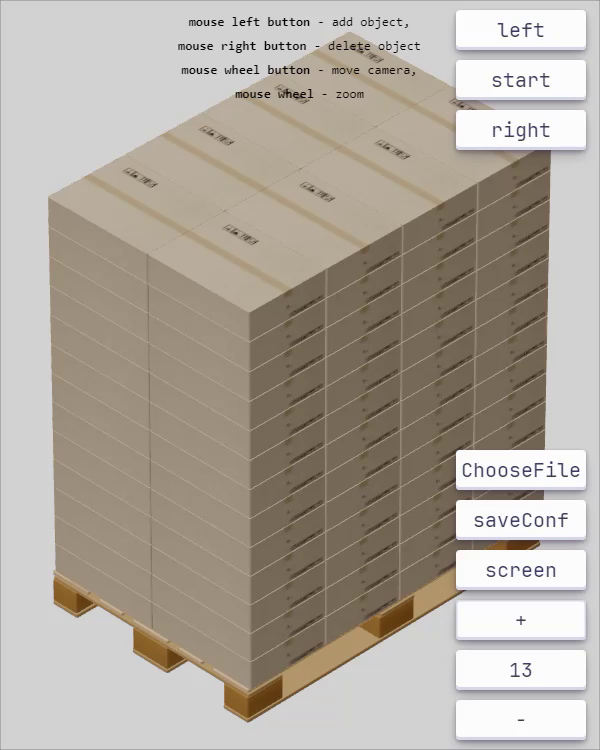

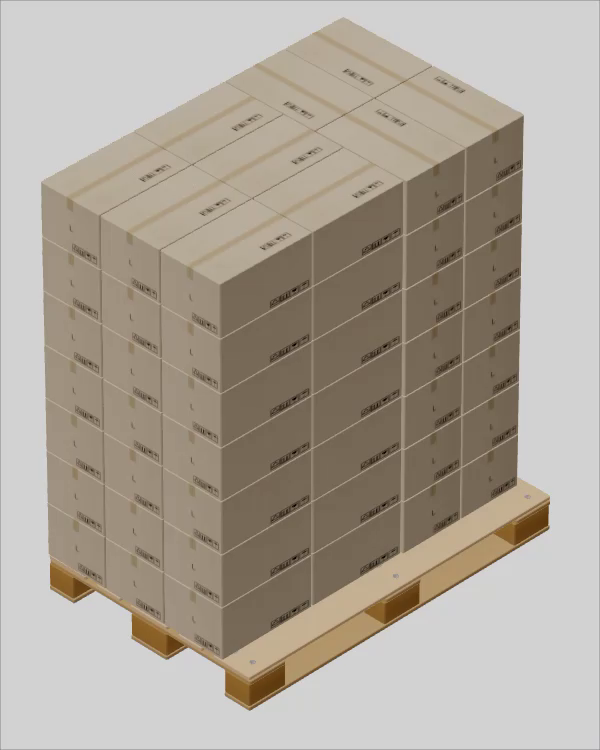

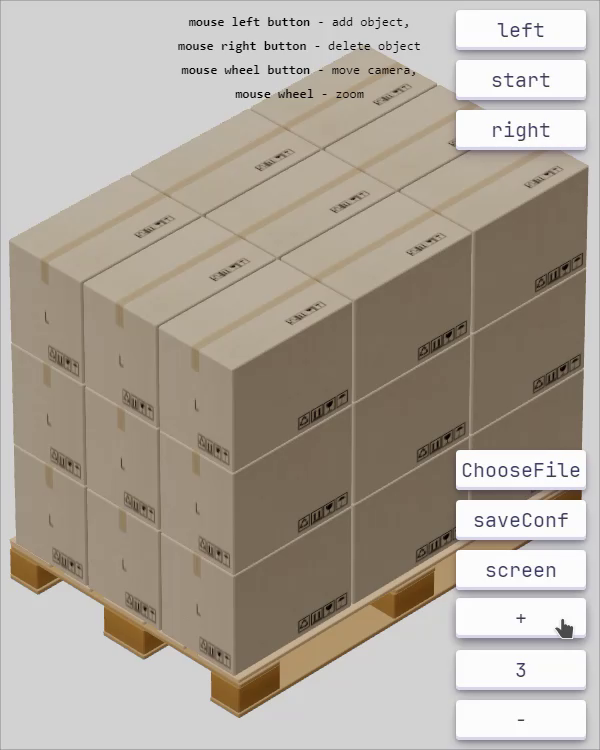

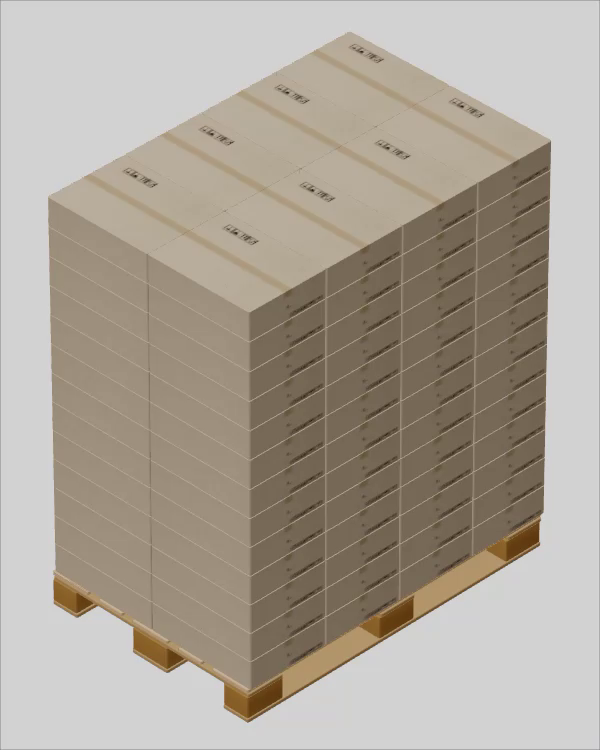

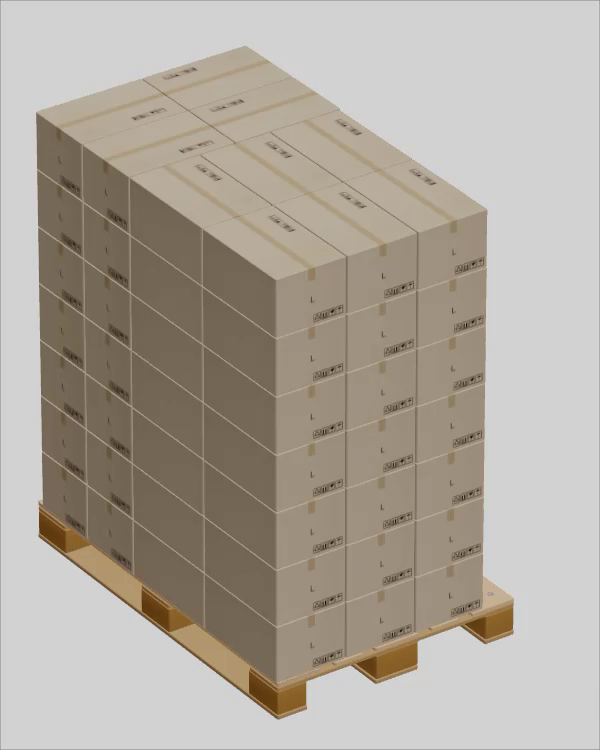

A Custom Web Control component for displaying your box stacking on a pallet in 3D, allowing you to rotate the model, change the parameters of the box and pallet, create your own configurations, save and load them, save an image in ".png" format, adjust the background color and its transparency, as well as certain camera parameters.

Additional features

If you want to change the 3D model of a box or pallet to another, send us these files and we will adjust the component for you! Also if you have additional requirements on the functionality of the component. We can make them for you, small free of charge, if something complex by agreement with you.

Limitations

Full functionality is supported in WinCC Unified PC RT (V18, V19 tested). Since panels have limited support for custom components.

Direct launch of the component in other systems is not possible. But for this purpose, saving the assembly in the .png format is provided. But for this, you will need to create these assemblies in WinCC Unified PC RT.

The component is only used to display your recipes for stacking boxes on a pallet. And a configurator for creating recipes.

The component is not currently directly connected to the stacking robots. It cannot send a task to the robot or receive feedback from it on how to stack boxes.

Version 1.1 (Beta) [15 Nov 2024]
  • Added possibility to display an object in isometry
  • Added ability to rotate an object on the scene
  • Changed the principle of object lighting
  • Fixed a bug that could result in multiple objects on the scene
Version 1.2 (Beta) [20 Dec 2024]
  • Added ability to select view from the list.
  • Added possibility to set the camera to the desired position manually.
  • Added ability to open a DebugWindow to track camera coordinates.
  • Added ability to change background transparency.
  • Changed the principle of calculating the camera position for correct display of 3D objects of any size.
  • Performance improvement and optimization.
Version 1.3 (Beta) [26 Dec 2024]
  • The configurator has been added.
  • The ability to change pallet and carton parameters has been added.
  • The ability to load configuration files has been added.
Version 1.3 (Beta) [26 Dec 2024]
  • The Admin has been added.
  • The ConfigJSON has been added.
  • Improving performance.
Version 1.4 (Release) [27 Dec 2024]
  • The Admin has been added.
  • The ConfigJSON has been added.
